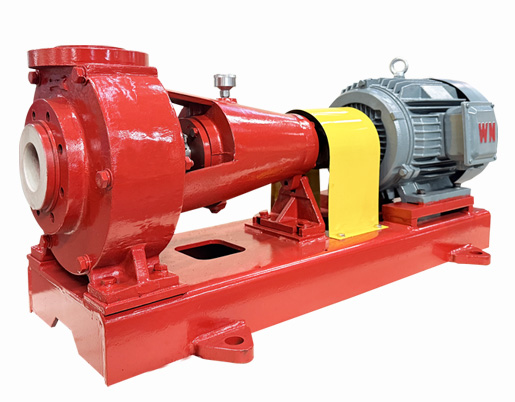

KJB- phosphate non-metal centrifugal pump

KJB- phosphate non-metal centrifugal pump

-Dimensions comply with DIN EN 22858 (ISO 2858)

-Parts in contact with the medium made of solid plastic(UHMW-PE)

-Optional particle-resistant and wear-resistant sealing system(PLAN54 flushing water system-Double seal)

-Open, axially adjustable impeller with back vanes(Semi open)

-Flow: 1- 1000m3/h

-Head: 1.5-80m

Inquiry now

product introduction

Phosphate pump

PLASTICS FEATURES

Polypropylene PP (Temperature range form 0℃ to +100℃)
High Molecular Polyethylene UHMW-PE(Temperature range from -50º C+80º C)
Polyvinylidene Fluoride PVDF (Temperature range from -20º C to +130º C)

SPECIFICATIONS

Design:Dimensions comply with DIN EN 22858 (ISO 2858)
Wetting material:Solid plastic lining exceeding 10 mm
Nominal Pressure:PN16/PN25
Flange:DN standard or ASME B16.5 class 150/JIS 10K, convex flange
Temperature range:-50℃ to 130℃
Certificate:ISO9001 certification, CE certification

APPLICATIONS

Petroleum Industry
Phosphate industry
Chemical Industry
Pharmacy and Health
Environmental and Water treatment
Electroplating industry
Environmental protection
Food service industry
Printing and dyeing area
Textile industry, etc

KJB pump

RISTER PUMPS

For more details or quotations with Phosphate pump, please contact us and leave your contact information.
