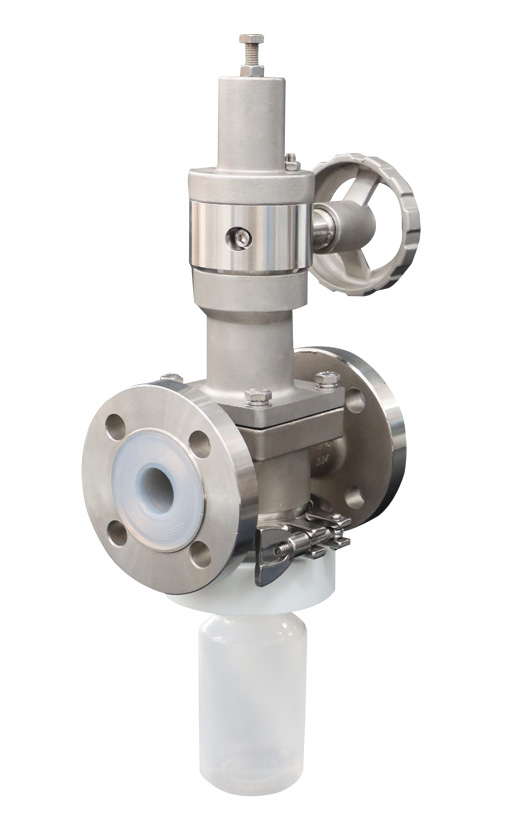

RBS-Lnline Sampling (Globe) Valve

The Inline Sampling Valve RBS is available in a wide range of materials and has a durable design to guarantee safe performance even under many kinds of operation-conditions(such as crorosive, aggressive, gaseous etc)

FEATURES

• Easy and safe operation.
• No dead space design.
• Modular design for optional adapter upgrades.
• Lockable handwheel.
• Handwheel two-Step Operating(Pull to rotate)to avoid misoperation.
• Automatic closing after release the handwheel.
• Bellow seal or Package seal for Options.
• Flange,Clamp and wafer connection design.

SPECIFICATIONS

• Versions:DIN/ISO/ANSI
• Flanges:DIN PN16/40 resp,ANSI 150lbs/300lbs
• Body:Cast stainless steel 1.4408(A351,CF-8M)316/1.4301(A351 CF-8)304/Alloys C-276/Titanium Gr.2 or Gr.7
• Spindle:1.4404(SS316L)/Alloys(See above)
• Lining:PFA/PFA-AS(conductive)/PTFE-V/PTFE-R
• Spindle seal:Stuffing box or Bellow stem seal system

OPTIONS

• Special spindle seal for liquid media with solids.
• Activated carbon filter.
• Higher pressure ratings at request.

OPERATING CONDITIONS(depending on material selection / spindle sealing)

• Pressure:0.1mbar(0.014psi) up to 40bar(580psi)
• Temperature:-40℃(-40℉) up to 280℃(536℉)
