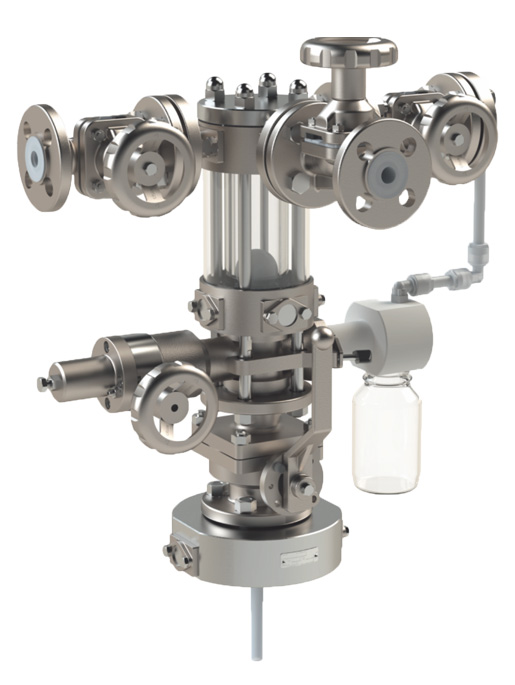

RRS-Reactor Top Sampling Systems

DN25-DN100/1”-4”

FEATURES

• Modular design for all kinds of combination to fit the operating conditions.
• Reliable Check valve.
• Changeable Volume.
• Strong Scalability.
• Stronge Corrosion Resistance,Wet parts are PFA/Glass/FFPM.

SPECIFICATIONS

• Versions:DIN/ISO/ANSI
• Flanges:DIN PN16/40 resp,ANSI 150lbs/300lbs
• Body:Cast stainless steel 1.4301(A351 CF-8)304
• Hollow Ball:PTFEE
• Ball Seatat:FFPMM
• Lining:PFA/PFA-AS(Conductive)
• Pump:PTFE/PE

OPERATING CONDITIONS(depending on material selection)

• Pressure:Main Vlave-500mbar(7.25psi) up to 16 bar(232 psi)/Sight Glass Unit-500mbar(7.25psi) up to 10 bar(145 psi)
• Temperature:-40℃(-40℉) up to 200℃(392℉)
