G Type-horizontal screw pump

-Compact structure and high efficiency.

-Design:Archimedes screw pump, optional packing and mechanical seal.

-Material: Cast iron / SUS304/SUS316L

-Nominal Pressure:0.3Mpa-1.2Mpa

-Flange:DN standard or ASME B16.5 class 150, convex flange.

-Temperature range:0℃ to 150℃.

-Features: Could transport liquid with high viscosity and containing particles.

Inquiry now

product introduction

FEATURES

Wide range of pressure and flow.
Transport liquids with all kinds of viscosity and particles.
Strong self-priming ability.
Long service life and high efficiency.

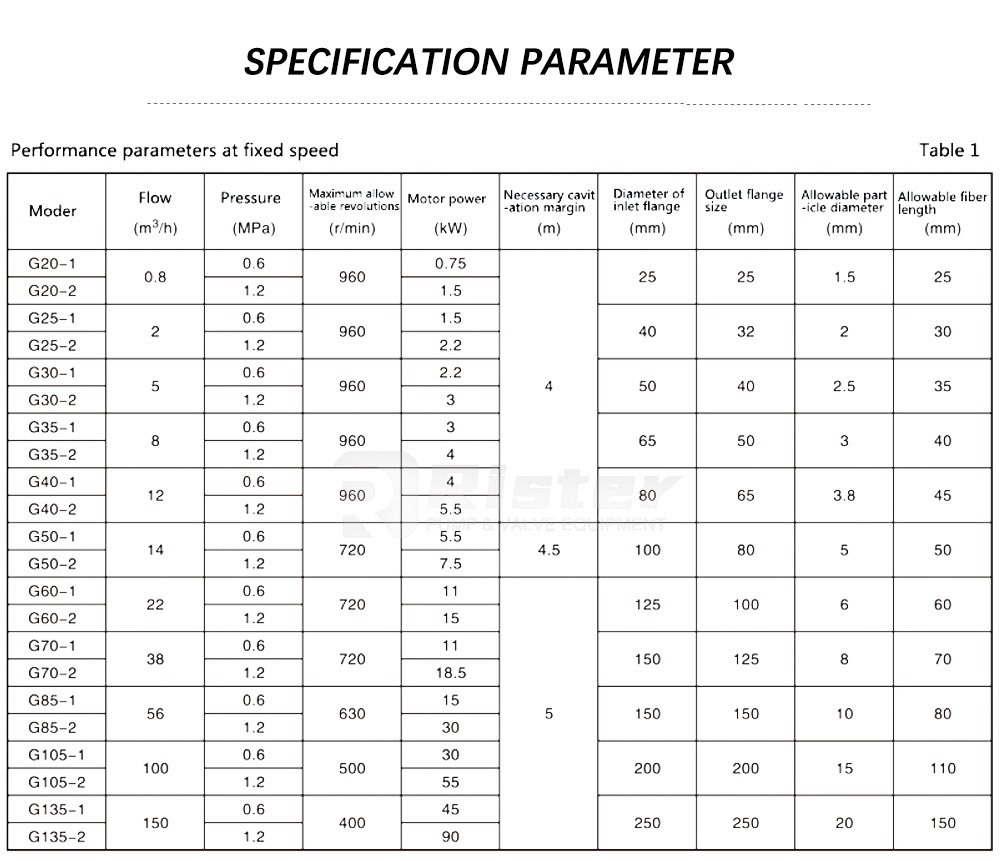

SPECIFICATIONS

Design:Archimedes screw pump, optional packing and mechanical seal.
Material: cast iron / SUS304/SUS316L
Nominal Pressure:0.3Mpa-1.2Mpa
Flange:DN standard or ASME B16.5 class 150, convex flange.
Temperature range:0℃ to 150℃.
Advantage: Transport all kinds of viscous slurry, domestic sewage, jam, syrup, edible oil, cement mortar and grease, etc.

RISTER PUMPS

For more details or quotations, please contact us and leave your contact information.
